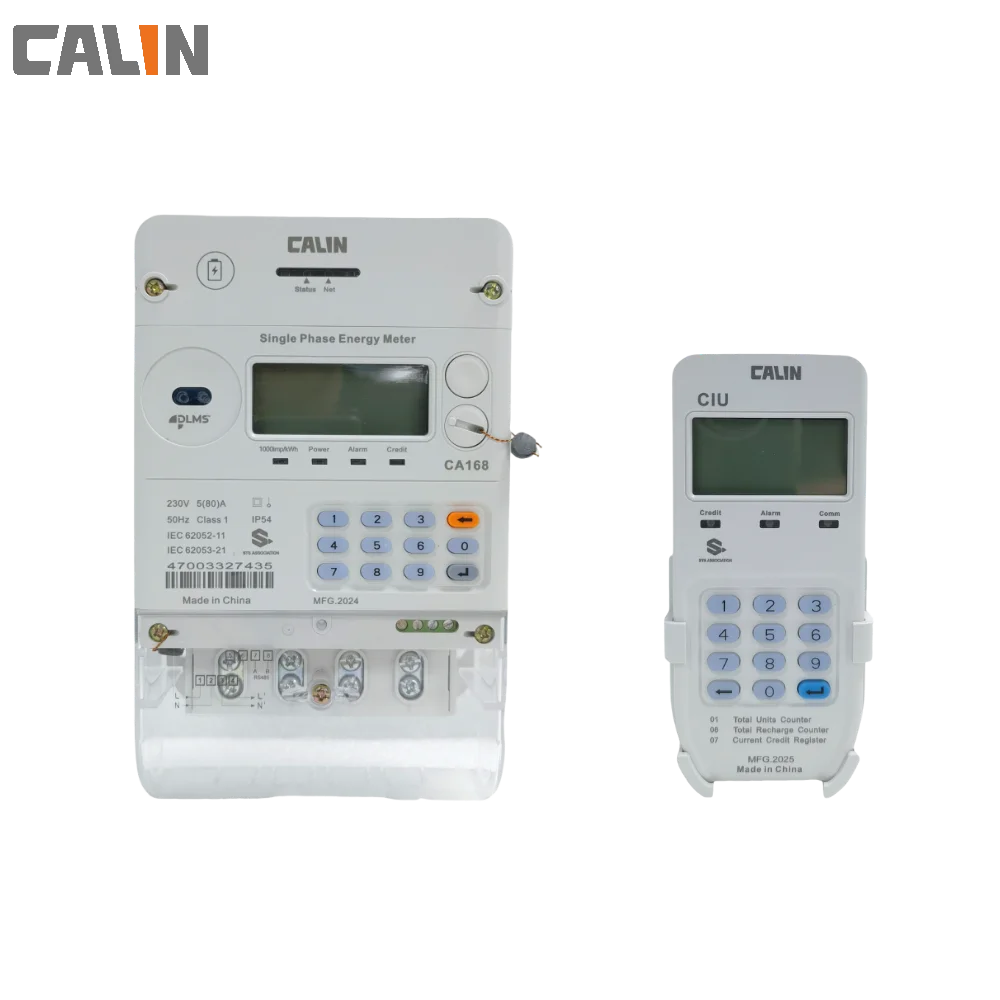

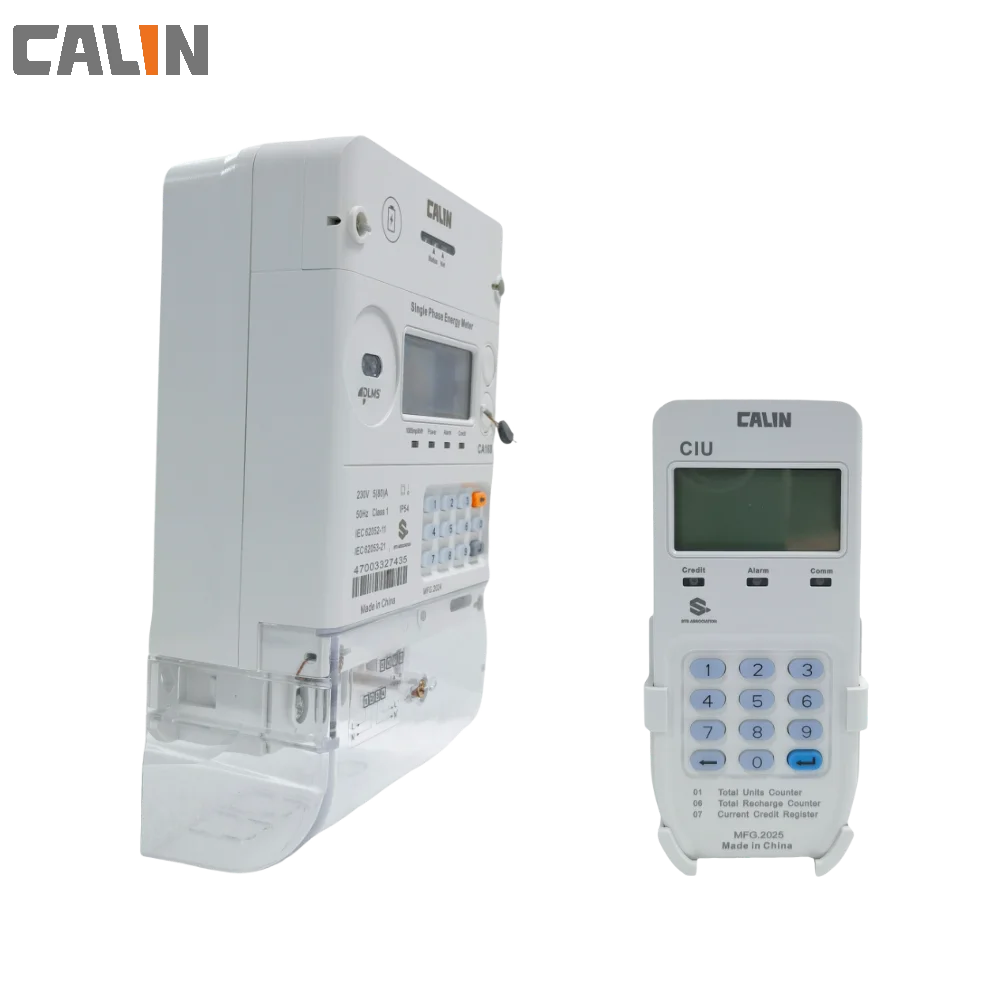

NEMSA Certified Prepaid Electricity Meter with 60/80/100A Max Current and 15 Years Lifespan Smart Keypad Meter

Contact Now

Prepaid Dual-source Smart Single-phase Keyboard Meter

Certified with DLMS, STS, and NEMSA standards for reliable and secure energy measurement.

NEMSA Certified Prepaid Electricity Meter with 60/80/100A Max Current and 15 Years Lifespan Smart Keypad Meter

Calin designs and produces cost-efficient prepaid electric meters ideal for AMR/AMI solutions in both residential and industrial applications. Our meters feature robust anti-tamper protection.

Key Benefits

Multiple communication options: RF, LoRa, LoRaWAN, PLC/G3PLC, GPRS/4G (available on request)
Advanced tariff management: Time of Use (TOU), multi-tariff, and holiday settings
Easy connection to Customer Interface Unit (CIU) for split-type applications
Long operational lifespan: 15 years design life
Customizable balance alarm settings to meet user requirements

Technical Parameters

Parameter	Specification
Nominal voltage Un	220/230/240V
Limited voltage	50%~130%Un
Nominal frequency fn	50/60Hz
Basic current(Ib)	5A
Maximum current(Imax)	60/80/100A
Starting current(Ist)	0.4%Ib
Active energy constant	1000imp/kWh
Accuracy as Active energy to IEC62053‐21	Class1.0
Power consumption in Voltage circuit	<2W <8VA
Power consumption in current circuit	<1VA
Operating temperature	-25℃ to +70℃
Storage temperature	-40℃ to +85℃

Main Features

Detection of significant reverse energy (SRE)
IEC62056-21 compliant optical & RS485 port for easy data interrogation
Automatic disconnection on overload and no credit conditions
Advanced anti-theft functionality to prevent electricity theft

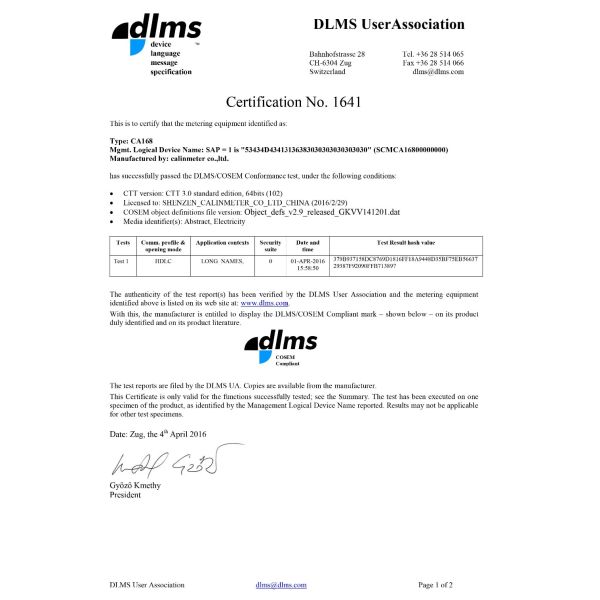

Certifications

Detailed Images

Our Service

Pre-Sales Service

Inquiry and consulting support
Sample testing support
Factory visit opportunities

After-Sales Service

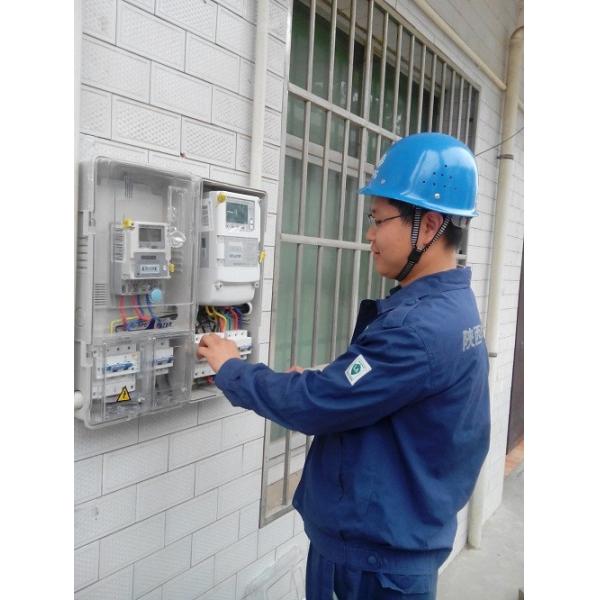

Installation and usage training
Overseas engineer support for machinery service

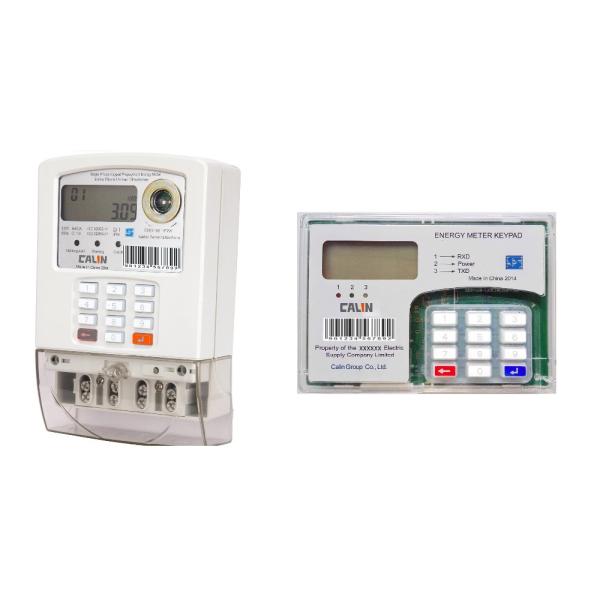

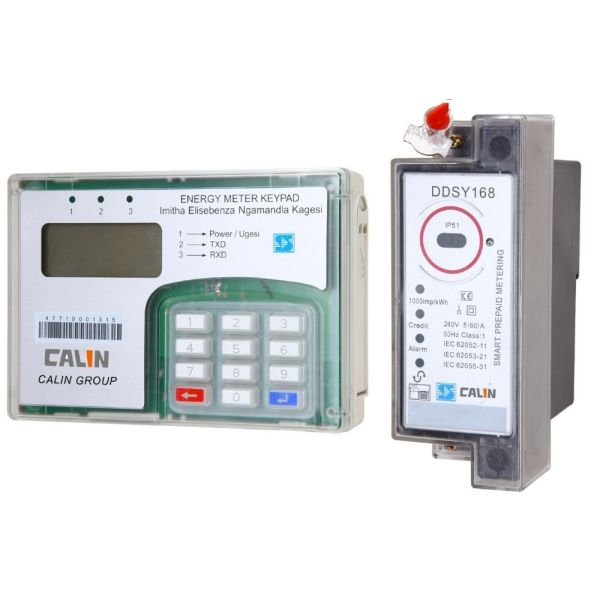

NEMSA Certified Prepaid Electricity Meter

60/80/100A Max Current Smart Keypad Meter

15 Years Lifespan Single Phase Energy Meter
