Din Rail STS Prepaid Energy Meter with 60A Max Current 15 Years Lifespan and IEC62056-21 Compliance

Contact Now

Din Rail Type STS Prepaid Energy Meter Support Means of Communication M-bus, PLC LORA, RF, RS 485 Dual Source
Din Rail STS Prepaid Energy Meter with 60A Max Current 15 Years Lifespan and IEC62056-21 Compliance
Calin designs and produces cost-efficient prepaid electric meters ideal for AMR/AMI solutions in both residential and industrial applications. Our prepaid meters feature robust anti-tamper protection.
Key Benefits
  • Current loop, RF/LoRa communication (available on request)
  • Time of Use (TOU), multi-tariff, and holiday settings

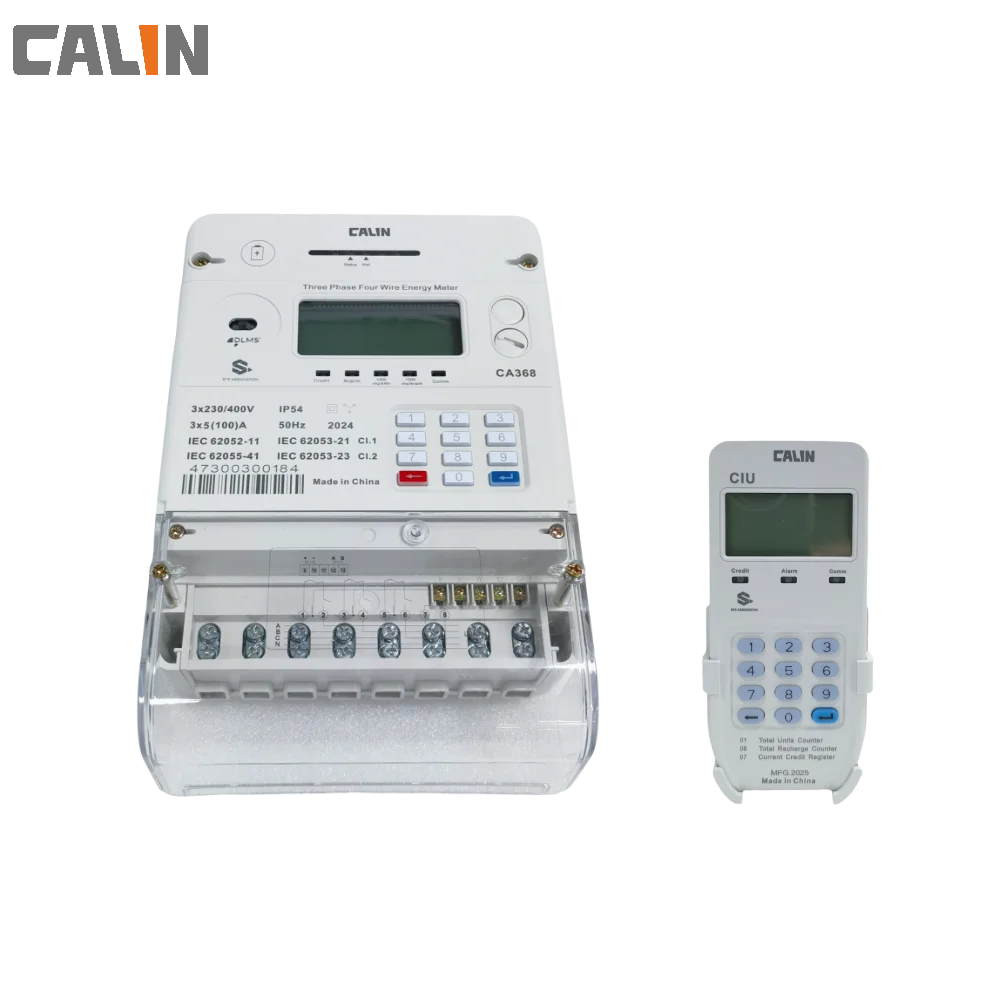

  • Easy connection to User Interface Unit (UIU) for split type applications
  • 15-year designed lifespan
  • User-configurable balance alarm
Technical Parameters
Parameter Specification
Nominal voltage Un 220/230/240 V
Limited voltage 70%~120%Un
Nominal frequency fn 50-60Hz+5%
Basic current(Ib) 5A
Maximum current(Imax) 60A
Starting current(Ist) 0.4%lb
Active energy constant 1000imp/kWh
Accuracy as Active energy to IEC62053‐21 Class1.0
Power consumption in Voltage circuit <2W <8VA
Power consumption in current circuit <1VA
Operating temperature -25℃ to +70℃
Storage temperature -40℃ to +85℃
Main Features
  • Detection of significant reverse energy (SRE)
  • IEC62056-21 compliant optical & RS485 port for easy data interrogation
  • Disconnects on overload and no credit
  • Anti-tamper function to prevent electricity theft
Certifications
Din Rail STS Prepaid Energy Meter with 60A Max Current 15 Years Lifespan and IEC62056-21 Compliance Din Rail STS Prepaid Energy Meter with 60A Max Current 15 Years Lifespan and IEC62056-21 Compliance Din Rail STS Prepaid Energy Meter with 60A Max Current 15 Years Lifespan and IEC62056-21 Compliance Din Rail STS Prepaid Energy Meter with 60A Max Current 15 Years Lifespan and IEC62056-21 Compliance
Detailed Images
Din Rail STS Prepaid Energy Meter with 60A Max Current 15 Years Lifespan and IEC62056-21 Compliance Din Rail STS Prepaid Energy Meter with 60A Max Current 15 Years Lifespan and IEC62056-21 Compliance Din Rail STS Prepaid Energy Meter with 60A Max Current 15 Years Lifespan and IEC62056-21 Compliance Din Rail STS Prepaid Energy Meter with 60A Max Current 15 Years Lifespan and IEC62056-21 Compliance
Our Service
Din Rail STS Prepaid Energy Meter with 60A Max Current 15 Years Lifespan and IEC62056-21 Compliance
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing available
Din Rail STS Prepaid Energy Meter with 60A Max Current 15 Years Lifespan and IEC62056-21 Compliance
After-Sales Service
  • Installation and usage training
  • Overseas engineer support available
Related Products
Din Rail STS Prepaid Energy Meter with 60A Max Current 15 Years Lifespan and IEC62056-21 Compliance
91.8% Response Rate
Packing & Delivery
Din Rail STS Prepaid Energy Meter with 60A Max Current 15 Years Lifespan and IEC62056-21 Compliance
Packaging Specification
Size 123 (L) * 456 (W) * 789 (D)
Weight 18kg
The normal package is wooden box (Size: L*W*H). If exporting to European countries, the wooden box will be fumigated. For tight container spaces, we can use PE film for packing or accommodate special customer requests.
